Galaxy Web Frameworks

📊 View as slides

Learning Questions

How does Galaxy handle web requests?
What web frameworks does Galaxy use?
What is the difference between ASGI and WSGI?

Learning Objectives

Understand the request/response cycle
Learn about ASGI, Starlette, and FastAPI
Understand WSGI and legacy routing
Learn about middleware layers

Client-Server Communications

Bits and pieces of older client technologies appear throughout - ranging from Python mako templates to generate HTML, lower-level jQuery, Axios interactions, and Backbone legacy MVC.

Processing requests on the server

Expanding the right side of that diagram. We will move through the components left to right.

ASGI - Application

Spiritual successor to WSGI. An ASGI application is an async callable that takes in a scope (dict describing the connection), send (an async callable to respond to events via), and receive (an async callable to receive messages).

async def application(scope, receive, send):
    event = await receive()
    ...
    await send({"type": "http.response.body", ...})

Checkout ASGI documentation for more details.

ASGI & Starlette Low-level Example

We will talk a lot about Galaxy and FastAPI - but much of its plumbing is just aliases for starlette ASGI handling.

from starlette.responses import PlainTextResponse

async def app(scope, receive, send):
    assert scope['type'] == "http"
    response = PlainTextResponse('Hello, world!')
    await response(scope, receive, send)

If this is placed in a file called example.py with Starlette on the Python path, the application server uvicorn can then host this application with the following shell command:

$ uvicorn example:app
INFO: Started server process [11509]
INFO: Uvicorn running on [http://127.0.0.1:8000](http://127.0.0.1:8000) (Press CTRL+C to quit)

Example from starlette.io.

ASGI - Starlette High-level Example

Building a higher-level example.py with Starlette.

from starlette.applications import Starlette
from starlette.responses import JSONResponse
from starlette.routing import Route


async def homepage(request):
    return JSONResponse({'hello': 'world'})


app = Starlette(debug=True, routes=[
    Route('/', homepage),
])

A small framework for building web applications.

ASGI - FastAPI

From https://github.com/tiangolo/fastapi/blob/master/fastapi/applications.py

...
from starlette.applications import Starlette
...

class FastAPI(Starlette):
    ...

FastAPI (the library and the application base) extends starlette framework with features for building APIs. These include data validation, serialization, documentation generation.

Processing requests on the server

FastAPI `call`

https://github.com/tiangolo/fastapi/blob/master/fastapi/applications.py

async def __call__(self, scope: Scope, receive: Receive, send: Send) -> None:
    if self.root_path:
        scope["root_path"] = self.root_path
    if AsyncExitStack:
        async with AsyncExitStack() as stack:
             scope["fastapi_astack"] = stack
             await super().__call__(scope, receive, send)
    else:
        await super().__call__(scope, receive, send)  # pragma: no cover

A light wrapper around Starlette’s call entry point.

Starlette `call`

https://github.com/encode/starlette/blob/master/starlette/applications.py

async def __call__(self, scope: Scope, receive: Receive, send: Send) -> None:
   scope["app"] = self
   await self.middleware_stack(scope, receive, send)

Walks through Starlette middleware.

Starlette `build_middleware_stack`

https://github.com/encode/starlette/blob/master/starlette/applications.py

def build_middleware_stack(self) -> ASGIApp:
    ...

    app = self.router
    for cls, options in reversed(middleware):
        app = cls(app=app, **options)
    return app

Start with the router and surround it with each layer of configured middleware.

ASGI Middleware

It is possible to have ASGI “middleware” - code that plays the role of both server and application, taking in a scope and the send/receive awaitable callables, potentially modifying them, and then calling an inner application.

https://asgi.readthedocs.io/en/latest/specs/main.html#middleware

Starlette Middleware

Starlette includes several middleware classes for adding behavior that is applied across your entire application. These are all implemented as standard ASGI middleware classes, and can be applied either to Starlette or to any other ASGI application.

https://www.starlette.io/middleware/

Starlette `build_middleware_stack`

https://github.com/encode/starlette/blob/master/starlette/applications.py

def build_middleware_stack(self) -> ASGIApp:
    ...

    app = self.router
    for cls, options in reversed(middleware):
        app = cls(app=app, **options)
    return app

Notice the inner most layer is the router.

FastAPI Router Initialization

https://github.com/tiangolo/fastapi/blob/master/fastapi/applications.py

class FastAPI(Starlette):
    def __init__(self, ...):
        self.router: routing.APIRouter = routing.APIRouter(
            routes=routes,
        )

FastAPI Router

from starlette import routing

class APIRouter(routing.Router):
   ...

Starlette Router

https://github.com/encode/starlette/blob/master/starlette/routing.py

async def __call__(self, scope: Scope, receive: Receive, send: Send) -> None:
   ...
   for route in self.routes:
       # Determine if any route matches the incoming scope,
       # and hand over to the matching route if found.
       match, child_scope = route.matches(scope)
       if match == Match.FULL:
           scope.update(child_scope)
           await route.handle(scope, receive, send)
           return
       ...

https://www.starlette.io/routing/

Router Class Diagram

In order to understand how the routing classes are setup within Galaxy, lets step back and look really quickly at how Galaxy’s FastAPI application (ASGI endpoint) is constructed.

FastAPI Factory

lib/galaxy/webapps/galaxy/fast_factory.py

def factory():
    props = WebappSetupProps(
        app_name='galaxy',
        default_section_name=DEFAULT_CONFIG_SECTION,
        env_config_file='GALAXY_CONFIG_FILE',
        env_config_section='GALAXY_CONFIG_SECTION',
        check_galaxy_root=True
    )
    config_provider = WebappConfigResolver(props)
    config = config_provider.resolve_config()
    gx_webapp, gx_app = app_pair(
        global_conf=config.global_conf,
        load_app_kwds=config.load_app_kwds,
        wsgi_preflight=config.wsgi_preflight
    )
    return initialize_fast_app(gx_webapp, gx_app)

FastAPI Application

lib/galaxy/webapps/galaxy/fast_app.py

def initialize_fast_app(gx_webapp, gx_app):
    app = FastAPI(
        title="Galaxy API",

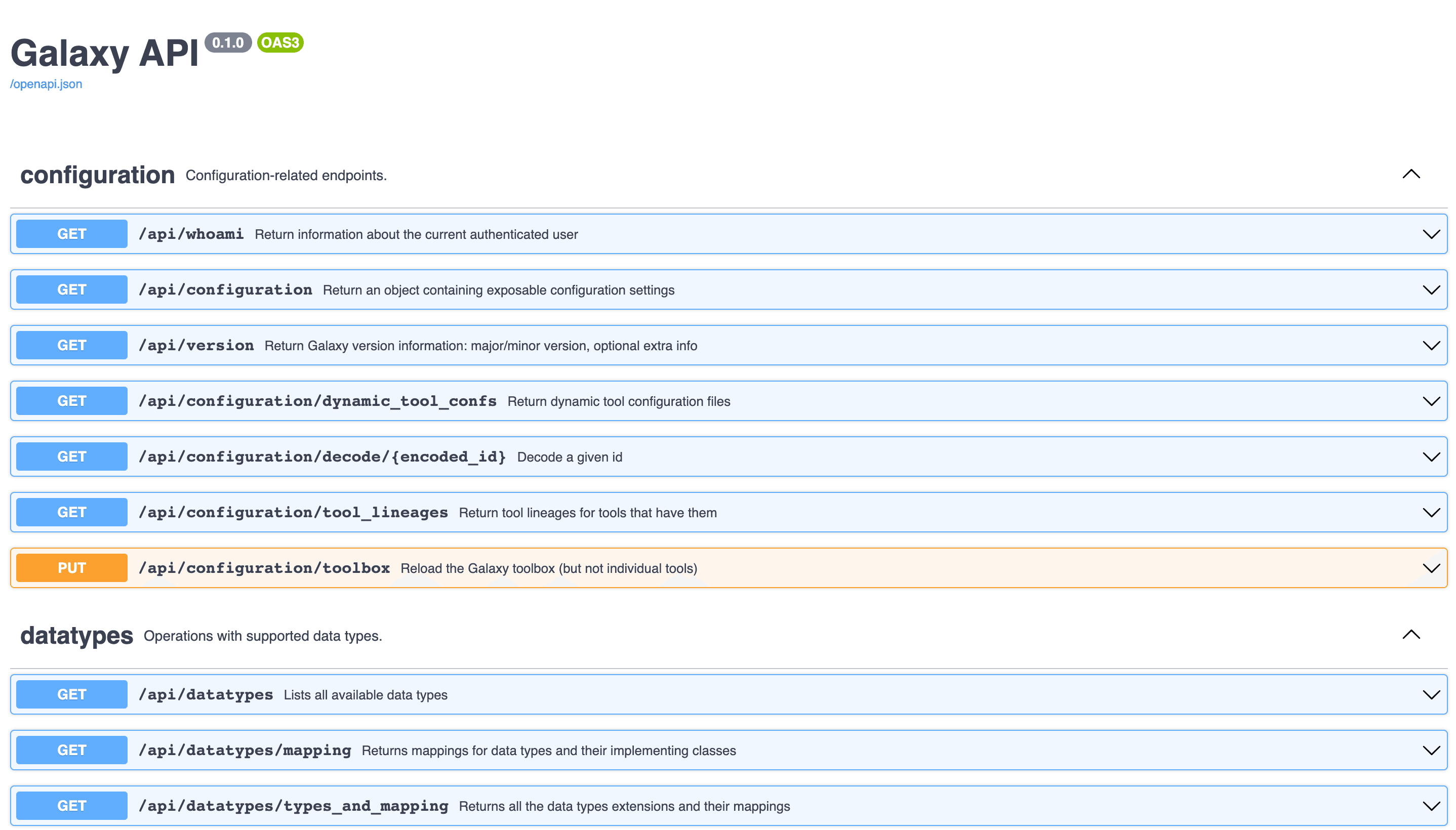

        docs_url="/api/docs",
        openapi_tags=api_tags_metadata,
    )
    add_exception_handler(app)
    add_galaxy_middleware(app, gx_app)
    add_request_id_middleware(app)
    include_all_package_routers(app, 'galaxy.webapps.galaxy.api')
    wsgi_handler = WSGIMiddleware(gx_webapp)
    app.mount('/', wsgi_handler)
    return app

Finding API Routers

Following this line:

include_all_package_routers(app, 'galaxy.webapps.galaxy.api')

to the file

lib/galaxy/webapps/base/api.py

def include_all_package_routers(app: FastAPI, package_name: str):
    for _, module in walk_controller_modules(package_name):
        router = getattr(module, "router", None)
        if router:
            app.include_router(router)

Routing inside the Application

router = Router(tags=['tags'])


@router.cbv
class FastAPITags:
    manager: TagsManager = depends(TagsManager)

    @router.put(
        '/api/tags',
        summary="Apply a new set of tags to an item.",
        status_code=status.HTTP_204_NO_CONTENT,
    )
    def update(
        self,
        trans: ProvidesUserContext = DependsOnTrans,
        payload: ItemTagsPayload = Body(
            ...,  # Required
            title="Payload",
            description="Request body containing the item and the tags to be assigned.",
        ),
    ):
        """Replaces the tags associated with an item with the new ones specified in the payload.

        - The previous tags will be __deleted__.
        - If no tags are provided in the request body, the currently associated tags will also be __deleted__.
        """
        self.manager.update(trans, payload)

Router Class Diagram

WSGI Fallback

Back to initialize_fast_app, two of the final lines were as follows:

wsgi_handler = WSGIMiddleware(gx_webapp)
app.mount('/', wsgi_handler)

This effectively provides a fallback to our legacy WSGI application.

WSGI

Python interface for web servers defined by PEP 333 - https://www.python.org/dev/peps/pep-0333/.
Galaxy tends to favor uWSGI, but other options such as Gunicorn and Paste can be used to host the application.
- https://uwsgi-docs.readthedocs.io/ (a million bells and whistles, highly performant, a bit brittle)
- https://gunicorn.org/ (simpler, more standard Python 3 WSGI server)
- https://bitbucket.org/ianb/paste (more of legacy interest, but still heavily used in testing for instance)

Processing requests on the server

WSGI Middleware

A WSGI function:

def app(environ, start_response):

Middleware act as filters, modify the environ and then pass through to the next webapp
Galaxy uses several middleware components defined in the wrap_in_middleware function of galaxy.webapps.galaxy.buildapp.

Galaxy’s WSGI Middleware

Middleware configured in galaxy.webapps.galaxy.buildapp#wrap_in_middleware.

paste.httpexceptions#make_middleware
galaxy.web.framework.middleware.remoteuser#RemoteUser (if configured)
paste.recursive#RecursiveMiddleware
galaxy.web.framework.middleware.sentry#Sentry (if configured)
Various debugging middleware (linting, interactive exceptions, etc…)
galaxy.web.framework.middleware.statsd#StatsdMiddleware (if configured)
galaxy.web.framework.middleware.xforwardedhost#XForwardedHostMiddleware
galaxy.web.framework.middleware.request_id#RequestIDMiddleware

Processing requests on the server (WSGI)

Instances

webapp

Classes

GalaxyWebApplication class diagram

Routes

Setup on webapp in galaxy.webapps.galaxy.buildapp.py.

webapp.add_route(
    '/datasets/:dataset_id/display/{filename:.+?}',
    controller='dataset', action='display',
    dataset_id=None, filename=None
)

URL /datasets/278043/display matches this route, so handle_request will

lookup the controller named “dataset”
look for a method named “display” that is exposed
call it, passing dataset_id and filename as keyword arg

Uses popular Routes library (https://pypi.python.org/pypi/Routes).

Simplified handle_request from lib/galaxy/web/framework/base.py.

def handle_request(self, environ, start_response):
    path_info = environ.get( 'PATH_INFO', '' )
    map = self.mapper.match( path_info, environ )
    if path_info.startswith('/api'):
        controllers = self.api_controllers
    else:
        controllers = self.controllers

    trans = self.transaction_factory( environ )

    controller_name = map.pop( 'controller', None )
    controller = controllers.get( controller_name, None )

    # Resolve action method on controller
    action = map.pop( 'action', 'index' )
    method = getattr( controller, action, None )

    kwargs = trans.request.params.mixed()
    # Read controller arguments from mapper match
    kwargs.update( map )

    body = method( trans, **kwargs )
    # Body may be a file, string, etc... respond with it.

Controllers

Three varieties

FastAPI ASGI API controllers
WSGI API controllers
Legacy WSGI web controllers.

Ideally each of these are thin. Focused on “web things” - adapting parameters and responses and move “business logic” to components not bound to web functionality.

FastAPI Controllers

Found in lib/galaxy/webapps/galaxy/controllers/api/.
Consume and produce typed data using Python 3 type annotations, FastAPI helpers, and Pydantic models.
Router specifies HTTP verb (GET, POST, PUT, etc..) and how to parse path.

FastAPI Controller Example

lib/galaxy/webapps/galaxy/controllers/api/roles.py

@router.cbv
class FastAPIRoles:
    role_manager: RoleManager = depends(RoleManager)

    @router.get('/api/roles')
    def index(self, trans: ProvidesUserContext = DependsOnTrans) -> RoleListModel:
        roles = self.role_manager.list_displayable_roles(trans)
        return RoleListModel(__root__=[role_to_model(trans, r) for r in roles])

    @router.get('/api/roles/{id}')
    def show(self, id: EncodedDatabaseIdField, trans: ProvidesUserContext = DependsOnTrans) -> RoleModel:
        role_id = trans.app.security.decode_id(id)
        role = self.role_manager.get(trans, role_id)
        return role_to_model(trans, role)

    @router.post("/api/roles", require_admin=True)
    def create(self, trans: ProvidesUserContext = DependsOnTrans, role_definition_model: RoleDefinitionModel = Body(...)) -> RoleModel:
        role = self.role_manager.create_role(trans, role_definition_model)
        return role_to_model(trans, role)

FastAPI and Pydantic

RoleIdField = Field(title="ID", description="Encoded ID of the role")
RoleNameField = Field(title="Name", description="Name of the role")
RoleDescriptionField = Field(title="Description", description="Description of the role")


class BasicRoleModel(BaseModel):
    id: EncodedDatabaseIdField = RoleIdField
    name: str = RoleNameField
    type: str = Field(title="Type", description="Type or category of the role")


class RoleModel(BasicRoleModel):
    description: str = RoleDescriptionField
    url: str = Field(title="URL", description="URL for the role")
    model_class: str = Field(title="Model class", description="Database model class (Role)")


class RoleDefinitionModel(BaseModel):
    name: str = RoleNameField
    description: str = RoleDescriptionField
    user_ids: Optional[List[EncodedDatabaseIdField]] = Field(title="User IDs", default=[])
    group_ids: Optional[List[EncodedDatabaseIdField]] = Field(title="Group IDs", default=[])

FastAPI and OpenAPI

FastAPI(title="Galaxy API", docs_url="/api/docs", ...)

OpenAPI Docs from FastAPI at api/docs

OpenAPI Docs from FastAPI at api/docs for roles

WSGI API Controllers

Also in lib/galaxy/webapps/galaxy/controllers/api/
Mirroring FastAPI controllers until FastAPI required (likely 21.09)
Exposed method take trans and request parameters and return a JSON response (possibly including Pydantic objects)

WSGI API Controller Example

lib/galaxy/webapps/galaxy/controllers/api/roles.py

class RoleAPIController(BaseGalaxyAPIController):
    role_manager: RoleManager = depends(RoleManager)

    @web.expose_api
    def index(self, trans: ProvidesUserContext, **kwd):
        """
        GET /api/roles
        Displays a collection (list) of roles.
        """
        roles = self.role_manager.list_displayable_roles(trans)
        return RoleListModel(__root__=[role_to_model(trans, r) for r in roles])

    @web.expose_api
    def show(self, trans: ProvidesUserContext, id: str, **kwd):
        """
        GET /api/roles/{encoded_role_id}
        Displays information about a role.
        """
        role_id = decode_id(self.app, id)
        role = self.role_manager.get(trans, role_id)
        return role_to_model(trans, role)

    @web.expose_api
    @web.require_admin
    def create(self, trans: ProvidesUserContext, payload, **kwd):
        """
        POST /api/roles
        Creates a new role.
        """
        expand_json_keys(payload, ["user_ids", "group_ids"])
        role_definition_model = RoleDefinitionModel(**payload)
        role = self.role_manager.create_role(trans, role_definition_model)
        return role_to_model(trans, role)

Legacy WSGI Controllers

lib/galaxy/webapps/galaxy/controllers/
Return arbitrary content - JSON, HTML, etc…
Render HTML components using mako templates (see templates/)
The usage of these should continue to decrease over time.

Key Takeaways

FastAPI (ASGI) for new API endpoints
WSGI for legacy endpoints
Middleware handles cross-cutting concerns
Routing maps URLs to controllers
Three types of controllers: FastAPI, WSGI API, legacy web

Galaxy Web Frameworks

Learning Questions

Learning Objectives

ASGI - Application

ASGI & Starlette Low-level Example

ASGI - Starlette High-level Example

ASGI - FastAPI

FastAPI __call__

Starlette __call__

Starlette build_middleware_stack

ASGI Middleware

Starlette Middleware

Starlette build_middleware_stack

FastAPI Router Initialization

FastAPI Router

Starlette Router

FastAPI Factory

FastAPI Application

Finding API Routers

Routing inside the Application

WSGI Fallback

WSGI

WSGI Middleware

Galaxy’s WSGI Middleware

Instances

Classes

Routes

Controllers

FastAPI Controllers

FastAPI Controller Example

FastAPI and Pydantic

FastAPI and OpenAPI

WSGI API Controllers

WSGI API Controller Example

Legacy WSGI Controllers

Key Takeaways

FastAPI `call`

Starlette `call`

Starlette `build_middleware_stack`

Starlette `build_middleware_stack`
