Galaxy Client Architecture

📊 View as slides

Learning Questions

How is the Galaxy UI built?
What frontend technologies does Galaxy use?
How do I develop and test the client?

Learning Objectives

Understand the client build process
Learn about Vue.js and Vuex
Navigate the client source code
Run client tests and development servers

Client Architecture

The architecture of Galaxy’s web user interface.

Client Directories

Source JavaScript for the client is in client/src.
Source stylesheets are in client/src/style.
“Packed” bundles served by Galaxy stored in static/dist
- run.sh uses git diff to try to determine if client needs to be built before starting Galaxy
- webpack builds these “compiled” artifacts

Upshot - to develop against the client, modify files in client/ and rebuild with make client before deployment.

Building the Client - Makefile Targets

client: node-deps ## Rebuild all client-side artifacts (for local dev)
  cd client && yarn run build

client-production-maps: node-deps ## Build optimized artifacts with sourcemaps.
  cd client && yarn run build-production-maps

client-watch: node-deps ## Rebuild client on each change.
  cd client && yarn run watch

client-format: node-deps ## Reformat client code
  cd client && yarn run prettier

client-lint: client-eslint client-format-check ## ES lint and check format of client

client-test: node-deps  ## Run JS unit tests
  cd client && yarn run test

client-test-watch: client ## Watch and run all client unit tests on changes
  cd client && yarn run jest-watch

node-deps: ## Install NodeJS and dependencies.

Automatically Reloading During Development

The following command rebuilds the application on each change.

make client-watch

This is still a relatively slow process, an extra client development server can be started that proxies non-client requests to your Galaxy server and selectively reloads only what is needed during active development (hot module replacement or HMR).

make client-dev-server

Make sure to open Galaxy at http://localhost:8081 instead to point at the client proxy.

What is Webpack

webpack in Galaxy

Packs and “transpiles” Galaxy ES6 code (.js), Galaxy Vue modules (.vue), libraries from npm, scss stylesheets (.scss) into browser native bundles.

Hundreds of high-level well organized files into optimized single files that can be quickly downloaded.

Lots of active development and complexity around Viz plugins and dependencies for instance, but the webpack configuration file in config/webpack.config.js is fairly straightforward.

Webpack in Action

Stylesheets

Galaxy shared stylesheets are generally defined using the SCSS syntax
SCSS is a high-level superset of CSS - https://sass-lang.com/documentation/syntax
sass is leveraged by webpack to convert these styles to native CSS at client build time
Rebuild style with make style
Galaxy’s SCSS files can be found in client/src/style/scss/

Package and Build Files

Client Build Files

Source Files

Client Build Files

ES6

The client is built from JavaScript source files. We use ES6 JavaScript.

A tutorial to help learn JavaScript generally might be https://www.w3schools.com/js/.

For someone familiar with JavaScript but that wants a primer on the new language features in ES6, https://www.w3schools.com/js/js_es6.asp may be more appropriate.

Vue

Vue.js is a reactive framework for building web client applications.

We chose Vue.js over React initially because of its focus on allowing developers to incrementally or progressively replace pieces of complex existing applications.

The idea behind Vue.js is fairly simple to pick up and there is a lot of great tutorials and videos available. https://vuejs.org/v2/guide/ is a really good jumping off point.

Pinia

Pinia is a state management library for Vue.js. It provides stores as the central source of truth, with a simpler, more intuitive API compared to earlier solutions. It supports Vue 2 and Vue 3 with Composition API.

https://pinia.vuejs.org/

Key features include devtools integration, hot module replacement, type-safe stores, and seamless TypeScript support.

Client Unit Tests

https://jestjs.io/

Configured in client/src/jest/jest.config.js.

Vue tests are placed beside components in client/src, more tests in client/test/qunit/tests and client/test/jest/standalone/.

Vue Test Utils

Vue Test Utils is the official unit testing utility library for Vue.js.

https://vue-test-utils.vuejs.org/

Really nice reference library documentation. A lot of helpers and concepts to unit test Vue components.

Client Unit Test Design Tips

https://github.com/galaxyproject/galaxy/tree/dev/client/docs/src/component-design/unit-testing

Clearly document the intent of your test
Implement logic in pure functions when possible
Wrap native browser resources in a function so they can be easily mocked

Webhooks in Galaxy

Webhooks is a system in Galaxy which can be used to write small JS and/or Python functions to change predefined locations in the Galaxy client.

In short: A plugin infrastructure for the Galaxy UI

You can learn more about webhooks using our webhook [training]({% link topics/dev/tutorials/webhooks/slides.html %}).

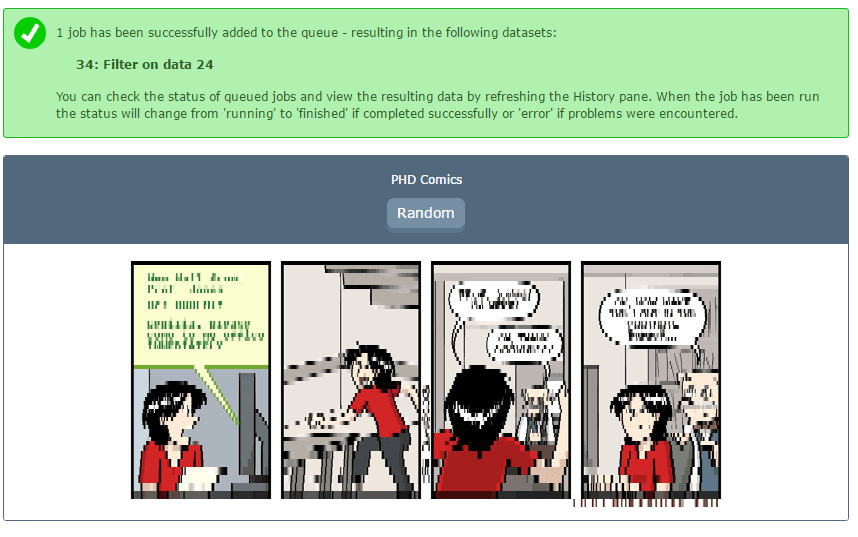

Webhook tool/workflow example

Screenshot of Galaxy with the job completion screen shown and a PhD comic image shown below.

Shown after tool or workflow execution. Comics, citations, support …
